ROW DTLA

a study of organic form with aluminum structure. in this course where we begin to take into consideration pre-existing building systems as we start the semester with the as-found case studies. we studied the roadhouse brewery steel truss system, Barcelona’s Santa Catarina market ceiling system with its tree-like support system, and the Geffen Contemporary Moca museum space study in Los Angeles.



interior render

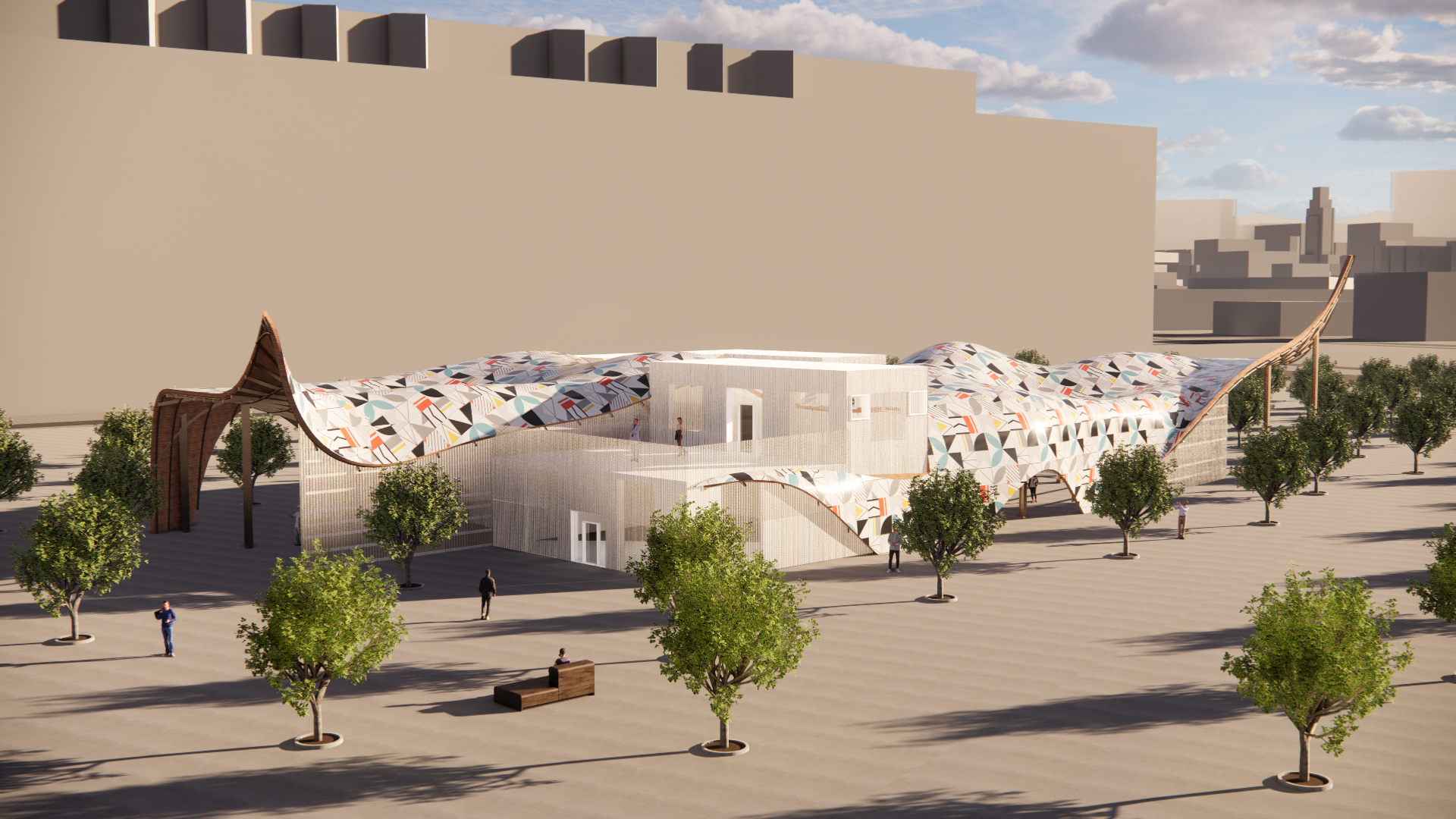

exterior render

as found case study

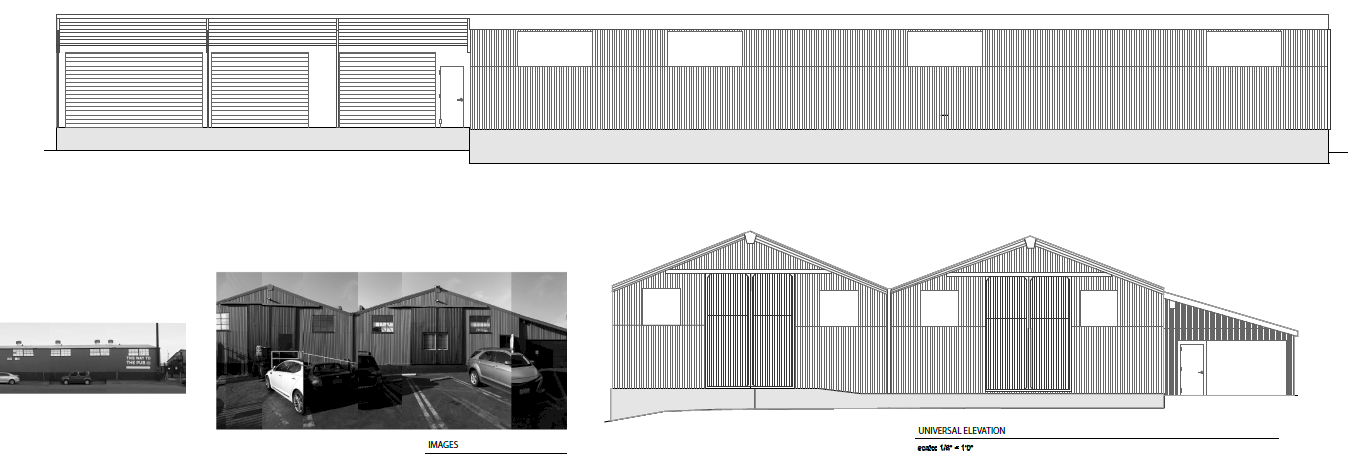

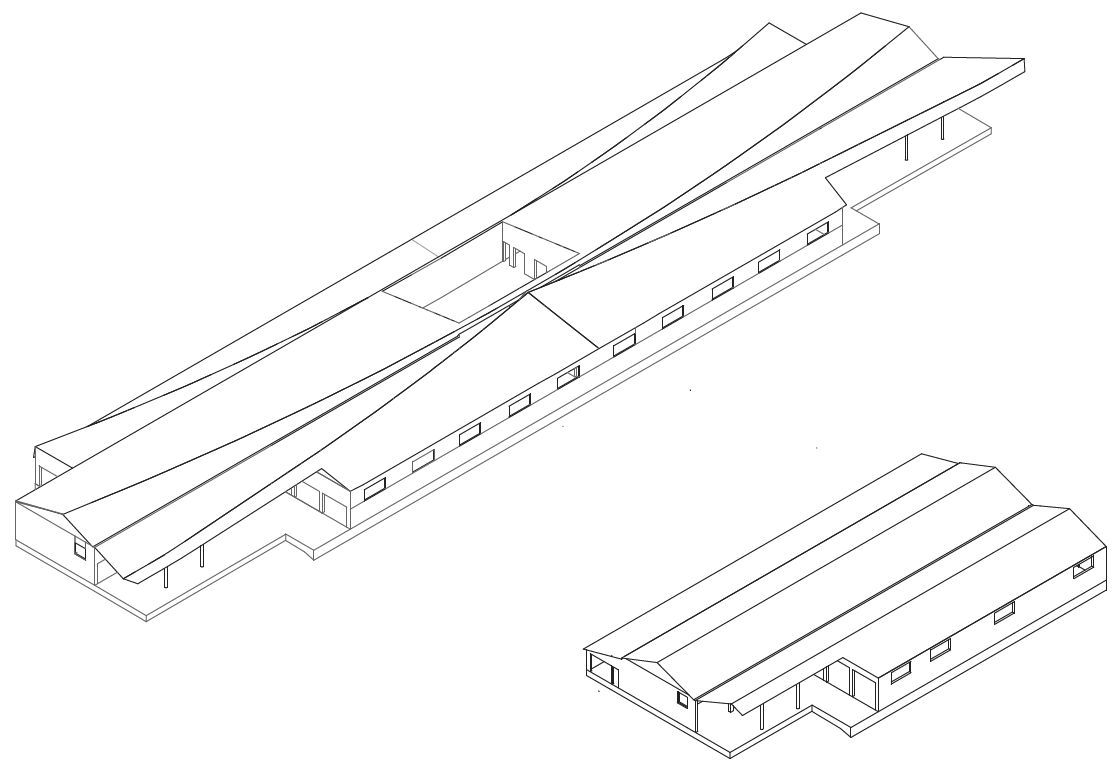

roadhouse brewery

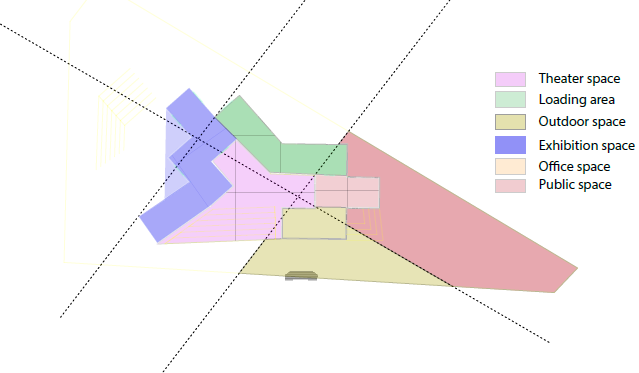

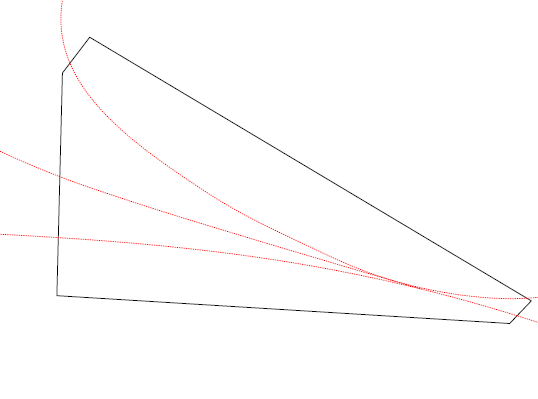

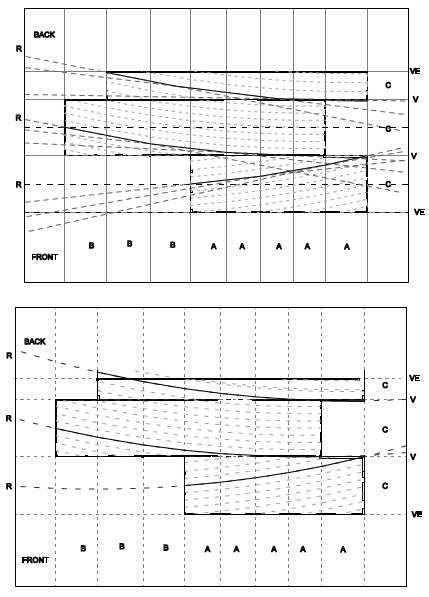

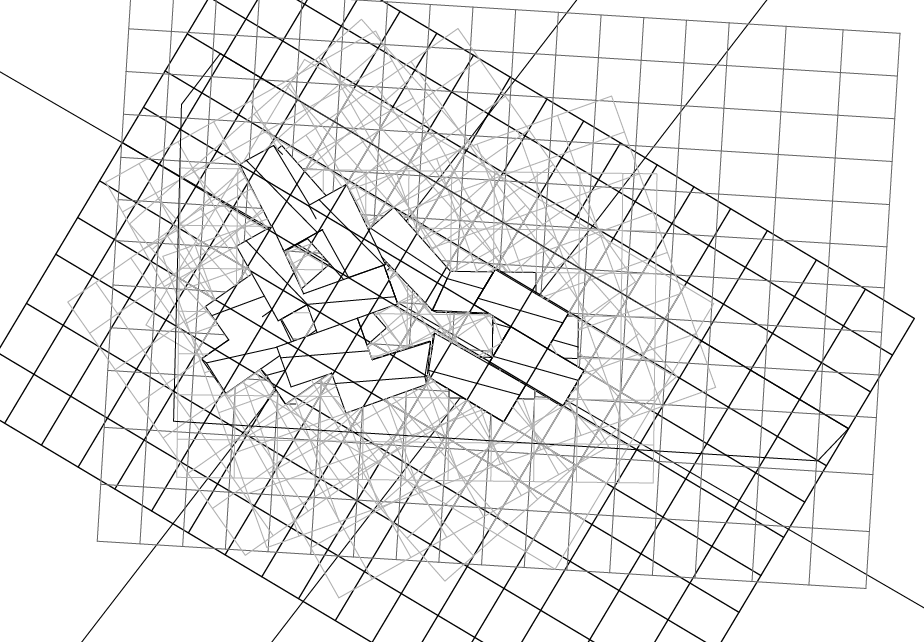

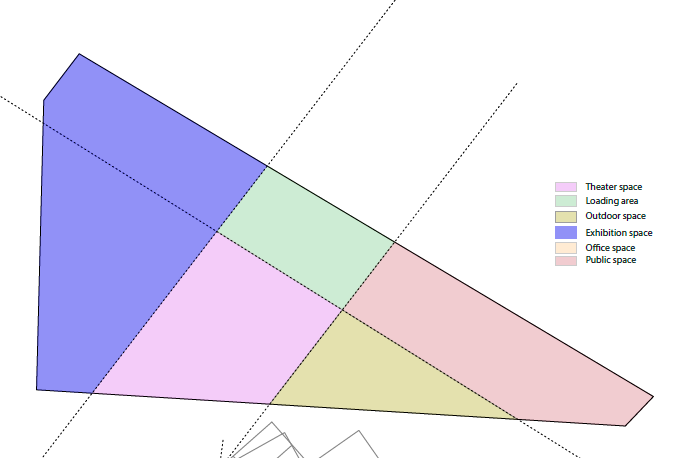

diagrams

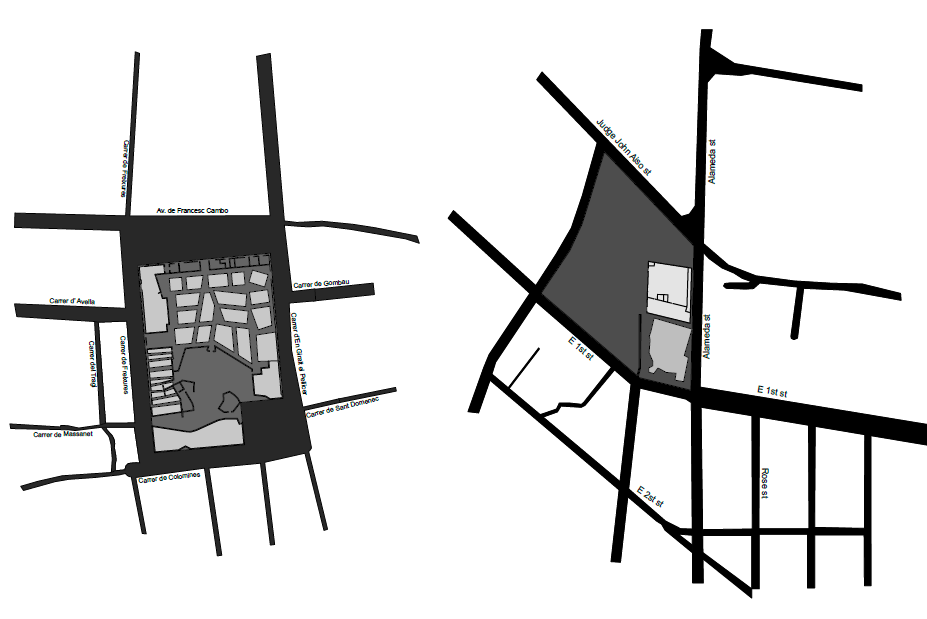

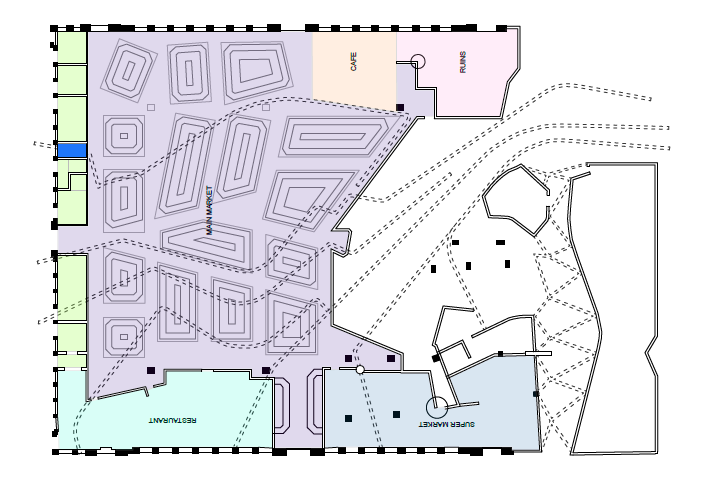

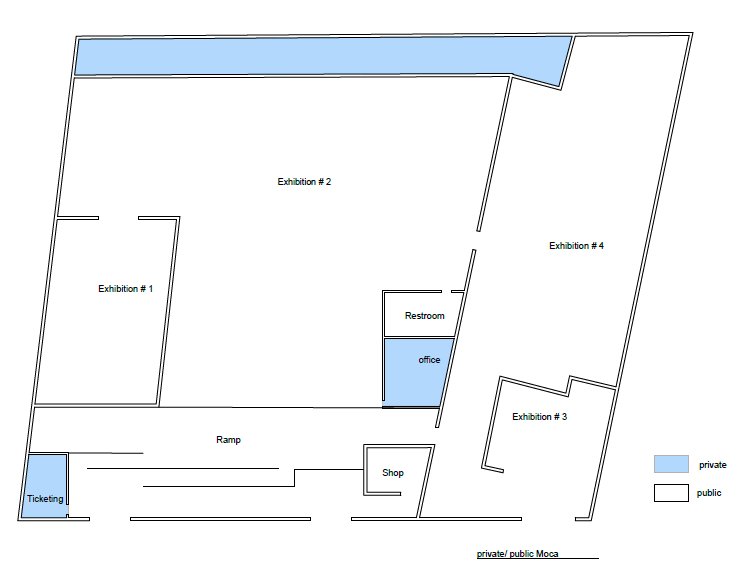

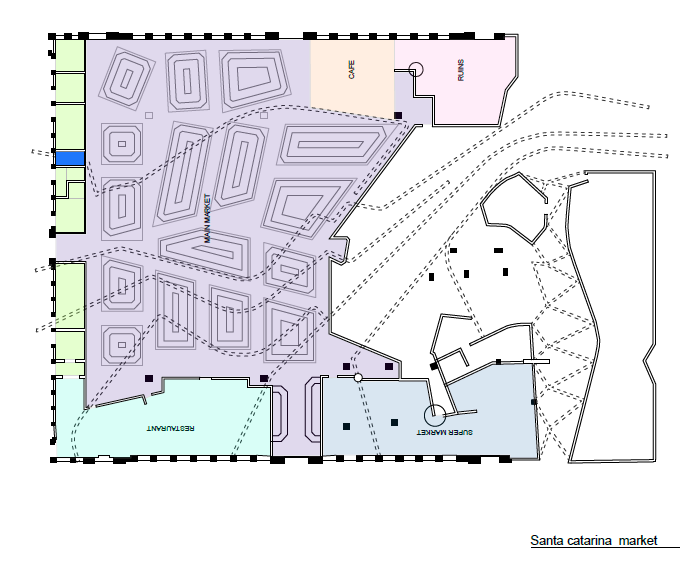

gaffen museum & santa caterina market

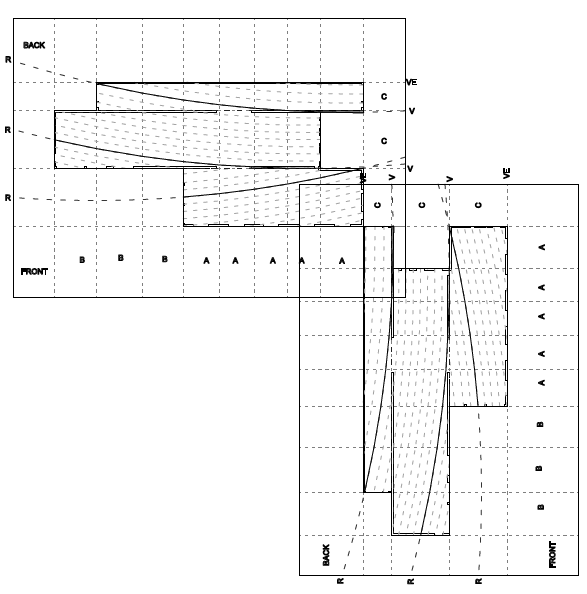

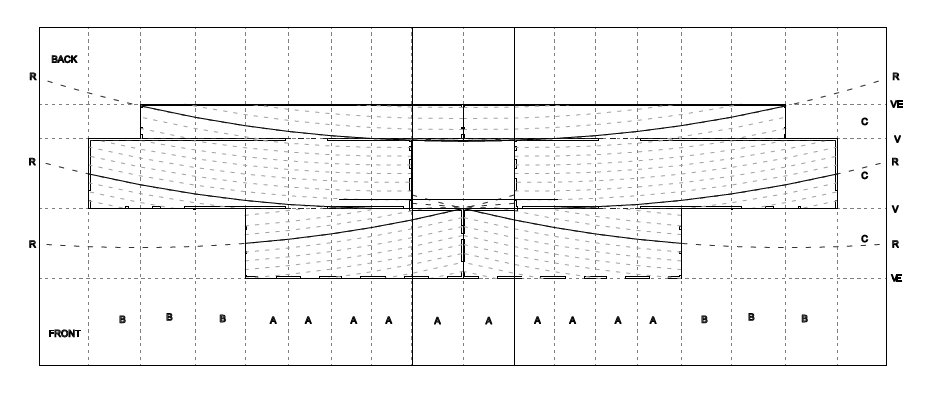

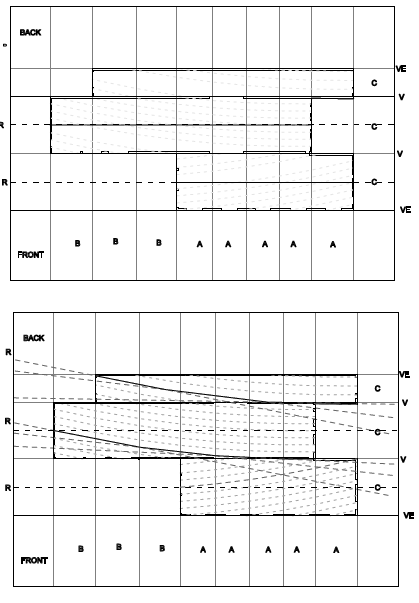

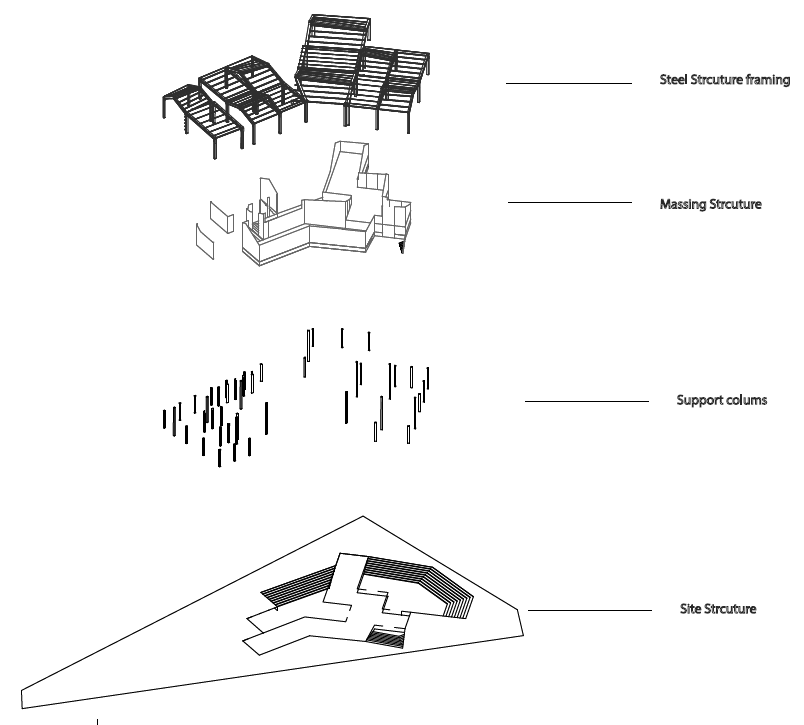

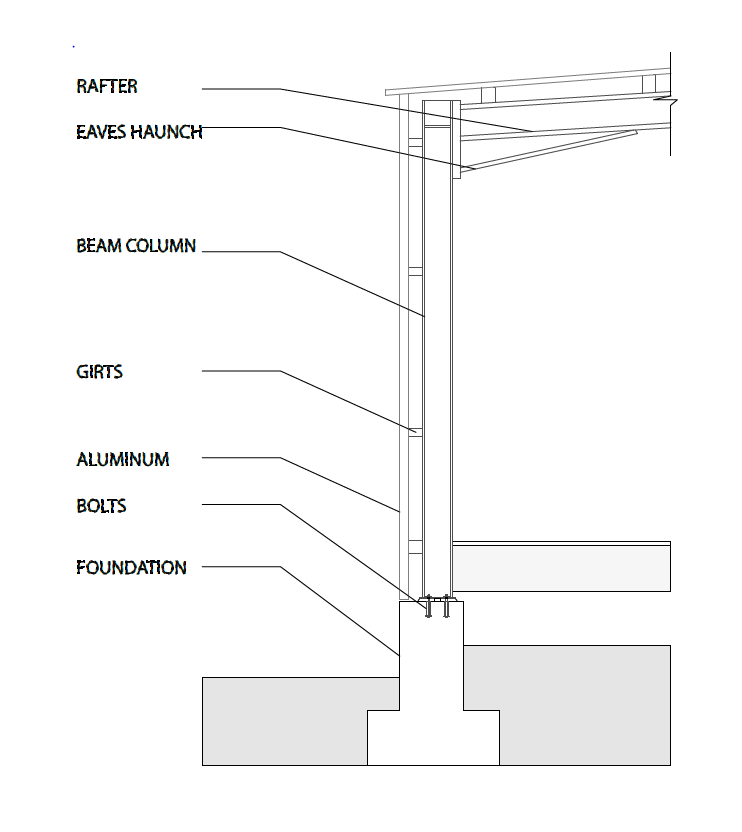

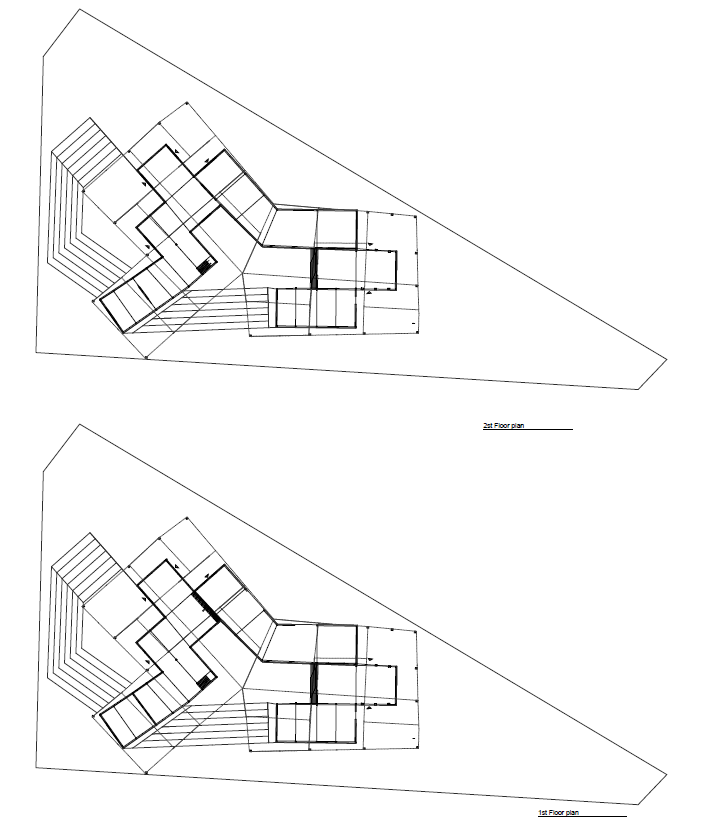

plans & structure
